Ojalillos Standard Catálogo Técnico
Especificaciones técnicas completas de nuestra línea de ojalillos en hierro, latón y aluminio.
Consulte medidas y solicite presupuesto.
Ojalillos standard
Medidas Disponibles
Seleccione el material para ver las medidas disponibles:

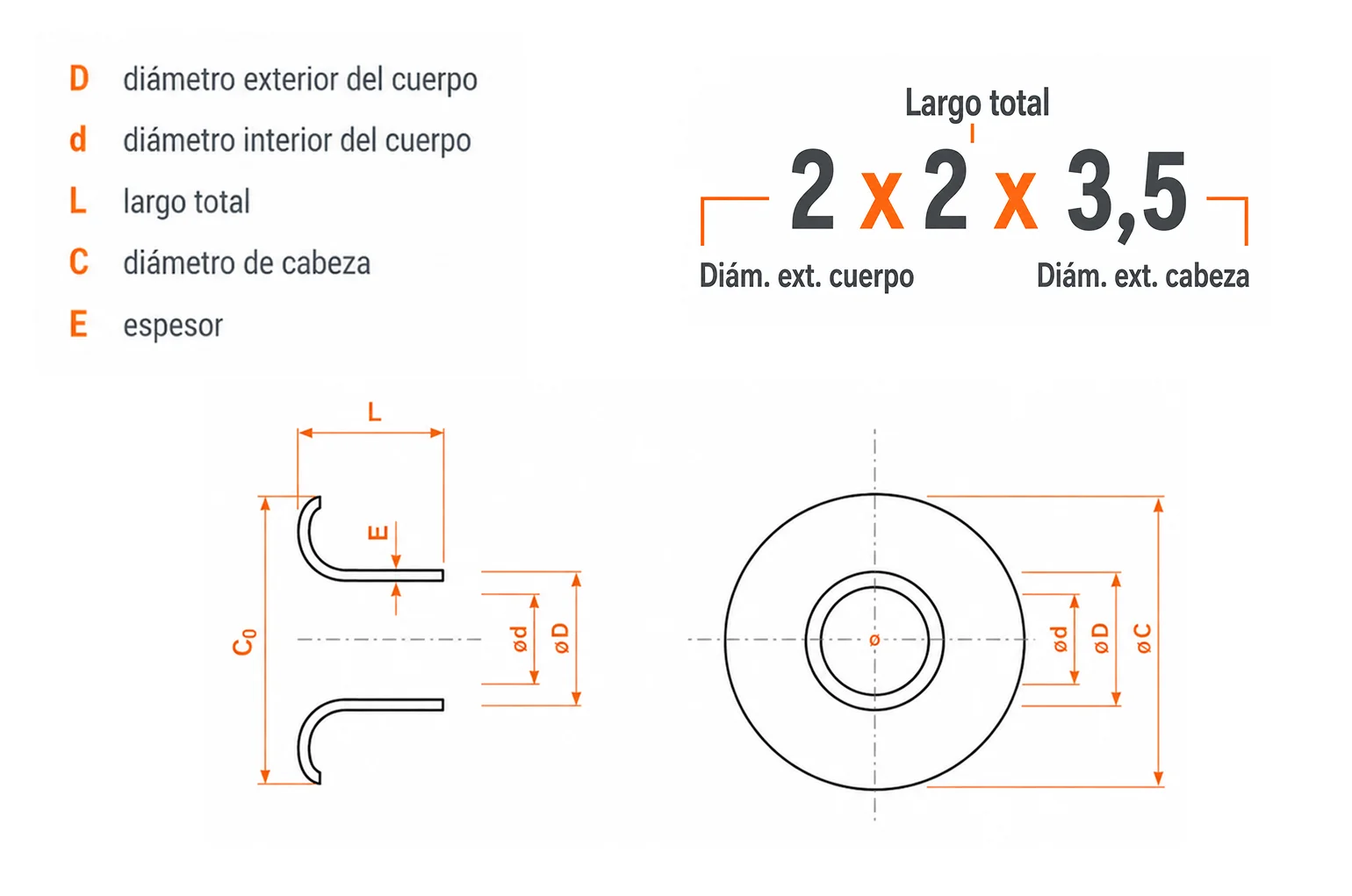

| Medida (D x L x C x E) | Material | D (mm) | L (mm) | C (mm) | E (mm) |
|---|---|---|---|---|---|
| 2 x 2 x 3.5 | Hierro/Hojalata | 2 | 2 | 3.5 | - |
| 2 x 2.5 x 3.5 | Hierro/Hojalata | 2 | 2.5 | 3.5 | - |
| 2 x 3 x 3.5 | Hierro/Hojalata | 2 | 3 | 3.5 | - |
| 2 x 3.5 x 3.5 | Hierro/Hojalata | 2 | 3.5 | 3.5 | - |
| 2 x 4 x 3.5 | Hierro/Hojalata | 2 | 4 | 3.5 | - |
| 2 x 4 x 4 | Hierro/Hojalata | 2 | 4 | 4 | - |
| 2 x 4.5 x 3.5 | Hierro/Hojalata | 2 | 4.5 | 3.5 | - |
| 2 x 4.5 x 4 | Hierro/Hojalata | 2 | 4.5 | 4 | - |
| 2 x 5 x 3.5 | Hierro/Hojalata | 2 | 5 | 3.5 | - |
| 2 x 5 x 4 | Hierro/Hojalata | 2 | 5 | 4 | - |
| 2 x 6 x 4 | Hierro/Hojalata | 2 | 6 | 4 | - |
| 2 x 7 x 4 | Hierro/Hojalata | 2 | 7 | 4 | - |
| 2.25 x 3 x 4 | Hierro/Hojalata | 2.25 | 3 | 4 | - |
| 2.25 x 4 x 4 | Hierro/Hojalata | 2.25 | 4 | 4 | - |
| 2.25 x 4.5 x 4 | Hierro/Hojalata | 2.25 | 4.5 | 4 | - |
| 2.25 x 4.75 x 3.75 | Hierro/Hojalata | 2.25 | 4.75 | 3.75 | - |
| 2.25 x 5 x 3.5 | Hierro/Hojalata | 2.25 | 5 | 3.5 | - |
| 2.25 x 5 x 4 | Hierro/Hojalata | 2.25 | 5 | 4 | - |
| 2.25 x 6 x 4 | Hierro/Hojalata | 2.25 | 6 | 4 | - |
| 2.25 x 7 x 4 | Hierro/Hojalata | 2.25 | 7 | 4 | - |
| 2.25 x 7.5 x 4 | Hierro/Hojalata | 2.25 | 7.5 | 4 | - |
| 2.25 x 8 x 4 | Hierro/Hojalata | 2.25 | 8 | 4 | - |
| 2.5 x 3 x 4 | Hierro/Hojalata | 2.5 | 3 | 4 | - |
| 2.5 x 3.5 x 4 | Hierro/Hojalata | 2.5 | 3.5 | 4 | - |
| 2.5 x 4 x 4 | Hierro/Hojalata | 2.5 | 4 | 4 | - |
| 2.5 x 4 x 4.5 | Hierro/Hojalata | 2.5 | 4 | 4.5 | - |
| 2.5 x 4 x 5 | Hierro/Hojalata | 2.5 | 4 | 5 | - |
| 2.5 x 4 x 6.5 | Hierro/Hojalata | 2.5 | 4 | 6.5 | - |
| 2.5 x 4.5 x 4 | Hierro/Hojalata | 2.5 | 4.5 | 4 | - |
| 2.5 x 4.5 x 4.75 | Hierro/Hojalata | 2.5 | 4.5 | 4.75 | - |
| 2.5 x 4.5 x 6.5 | Hierro/Hojalata | 2.5 | 4.5 | 6.5 | - |
| 2.5 x 5 x 4 | Hierro/Hojalata | 2.5 | 5 | 4 | - |
| 2.5 x 5 x 4.5 | Hierro/Hojalata | 2.5 | 5 | 4.5 | - |
| 2.5 x 6 x 4 | Hierro/Hojalata | 2.5 | 6 | 4 | - |
| 2.5 x 6 x 4.5 | Hierro/Hojalata | 2.5 | 6 | 4.5 | - |
| 2.5 x 6 x 6.5 | Hierro/Hojalata | 2.5 | 6 | 6.5 | - |
| 2.5 x 7 x 6.5 | Hierro/Hojalata | 2.5 | 7 | 6.5 | - |
| 2.5 x 7.5 x 4 | Hierro/Hojalata | 2.5 | 7.5 | 4 | - |
| 2.5 x 7.5 x 4.5 | Hierro/Hojalata | 2.5 | 7.5 | 4.5 | - |
| 2.5 x 8 x 4.5 | Hierro/Hojalata | 2.5 | 8 | 4.5 | - |
| 2.5 x 9 x 4.5 | Hierro/Hojalata | 2.5 | 9 | 4.5 | - |
| 2.6 x 3.75 x 3.75 | Hierro/Hojalata | 2.6 | 3.75 | 3.75 | - |
| 3 x 2.5 x 4.5 | Hierro/Hojalata | 3 | 2.5 | 4.5 | - |
| 3 x 2.5 x 5 | Hierro/Hojalata | 3 | 2.5 | 5 | - |
| 3 x 3 x 5 | Hierro/Hojalata | 3 | 3 | 5 | - |
| 3 x 3 x 5.5 | Hierro/Hojalata | 3 | 3 | 5.5 | - |
| 3 x 3.5 x 5 | Hierro/Hojalata | 3 | 3.5 | 5 | - |
| 3 x 3.5 x 5.5 | Hierro/Hojalata | 3 | 3.5 | 5.5 | - |
| 3 x 4 x 5 | Hierro/Hojalata | 3 | 4 | 5 | - |
| 3 x 4 x 5.5 | Hierro/Hojalata | 3 | 4 | 5.5 | - |
| 3 x 4.5 x 5.5 | Hierro/Hojalata | 3 | 4.5 | 5.5 | - |
| 3 x 5 x 5 | Hierro/Hojalata | 3 | 5 | 5 | - |
| 3 x 5 x 5.5 | Hierro/Hojalata | 3 | 5 | 5.5 | - |
| 3 x 5 x 7 | Hierro/Hojalata | 3 | 5 | 7 | - |
| 3 x 5.5 x 5.5 | Hierro/Hojalata | 3 | 5.5 | 5.5 | - |
| 3 x 6 x 4.5 | Hierro/Hojalata | 3 | 6 | 4.5 | - |
| 3 x 6 x 5 | Hierro/Hojalata | 3 | 6 | 5 | - |
| 3 x 6 x 5.5 | Hierro/Hojalata | 3 | 6 | 5.5 | - |
| 3 x 6.5 x 6 | Hierro/Hojalata | 3 | 6.5 | 6 | - |
| 3 x 7 x 5.5 | Hierro/Hojalata | 3 | 7 | 5.5 | - |
| 3 x 7 x 7 | Hierro/Hojalata | 3 | 7 | 7 | - |
| 3 x 7.5 x 5.5 | Hierro/Hojalata | 3 | 7.5 | 5.5 | - |
| 3 x 8 x 5.5 | Hierro/Hojalata | 3 | 8 | 5.5 | - |
| 3 x 8.5 x 5.5 | Hierro/Hojalata | 3 | 8.5 | 5.5 | - |
| 3 x 9 x 5.5 | Hierro/Hojalata | 3 | 9 | 5.5 | - |
| 3 x 10 x 5.5 | Hierro/Hojalata | 3 | 10 | 5.5 | - |
| 3 x 10.5 x 5.5 | Hierro/Hojalata | 3 | 10.5 | 5.5 | - |
| 3 x 11 x 5.5 | Hierro/Hojalata | 3 | 11 | 5.5 | - |
| 3.1 x 3 x 5 | Hierro/Hojalata | 3.1 | 3 | 5 | - |
| 3.1 x 3.5 x 5 | Hierro/Hojalata | 3.1 | 3.5 | 5 | - |
| 3.1 x 9 x 5.75 | Hierro/Hojalata | 3.1 | 9 | 5.75 | - |
| 3.1 x 9 x 6 | Hierro/Hojalata | 3.1 | 9 | 6 | - |
| 3.2 x 3.5 x 4.8 | Hierro/Hojalata | 3.2 | 3.5 | 4.8 | - |
| 3.25 x 3 x 5 | Hierro/Hojalata | 3.25 | 3 | 5 | - |
| 3.25 x 3.5 x 4.75 | Hierro/Hojalata | 3.25 | 3.5 | 4.75 | - |
| 3.25 x 3.5 x 5 | Hierro/Hojalata | 3.25 | 3.5 | 5 | - |
| 3.25 x 3.5 x 5.75 | Hierro/Hojalata | 3.25 | 3.5 | 5.75 | - |
| 3.25 x 4 x 5 | Hierro/Hojalata | 3.25 | 4 | 5 | - |
| 3.25 x 4 x 5.5 | Hierro/Hojalata | 3.25 | 4 | 5.5 | - |
| 3.25 x 4 x 6 | Hierro/Hojalata | 3.25 | 4 | 6 | - |
| 3.25 x 4 x 12 | Hierro/Hojalata | 3.25 | 4 | 12 | - |
| 3.25 x 4.5 x 5.5 | Hierro/Hojalata | 3.25 | 4.5 | 5.5 | - |
| 3.25 x 5 x 5.5 | Hierro/Hojalata | 3.25 | 5 | 5.5 | - |
| 3.25 x 6 x 5.5 | Hierro/Hojalata | 3.25 | 6 | 5.5 | - |
| 3.25 x 7 x 5.75 | Hierro/Hojalata | 3.25 | 7 | 5.75 | - |
| 3.25 x 8 x 5.75 | Hierro/Hojalata | 3.25 | 8 | 5.75 | - |
| 3.25 x 9 x 5.75 | Hierro/Hojalata | 3.25 | 9 | 5.75 | - |
| 3.25 x 9 x 6.25 | Hierro/Hojalata | 3.25 | 9 | 6.25 | - |
| 3.5 x 3 x 6 | Hierro/Hojalata | 3.5 | 3 | 6 | - |
| 3.5 x 4 x 6 | Hierro/Hojalata | 3.5 | 4 | 6 | - |
| 3.5 x 5 x 5.5 | Hierro/Hojalata | 3.5 | 5 | 5.5 | - |
| 3.5 x 5 x 6 | Hierro/Hojalata | 3.5 | 5 | 6 | - |
| 3.5 x 5 x 6.5 | Hierro/Hojalata | 3.5 | 5 | 6.5 | - |
| 3.5 x 5.5 x 6.5 | Hierro/Hojalata | 3.5 | 5.5 | 6.5 | - |
| 3.5 x 6 x 5.75 | Hierro/Hojalata | 3.5 | 6 | 5.75 | - |
| 3.5 x 6 x 6 | Hierro/Hojalata | 3.5 | 6 | 6 | - |
| 3.5 x 7 x 5.75 | Hierro/Hojalata | 3.5 | 7 | 5.75 | - |
| 3.5 x 7.5 x 13 | Hierro/Hojalata | 3.5 | 7.5 | 13 | - |
| 3.5 x 8 x 5.75 | Hierro/Hojalata | 3.5 | 8 | 5.75 | - |
| 3.5 x 9 x 5.75 | Hierro/Hojalata | 3.5 | 9 | 5.75 | - |
| 3.5 x 10 x 6 | Hierro/Hojalata | 3.5 | 10 | 6 | - |
| 3.5 x 10.5 x 6 | Hierro/Hojalata | 3.5 | 10.5 | 6 | - |
| 3.6 x 3.5 x 6.75 | Hierro/Hojalata | 3.6 | 3.5 | 6.75 | - |
| 3.75 x 4 x 5.5 | Hierro/Hojalata | 3.75 | 4 | 5.5 | - |
| 3.75 x 11.5 x 6.5 | Hierro/Hojalata | 3.75 | 11.5 | 6.5 | - |
| 4 x 2 x 6.5 | Hierro/Hojalata | 4 | 2 | 6.5 | - |
| 4 x 3 x 6.5 | Hierro/Hojalata | 4 | 3 | 6.5 | - |
| 4 x 4 x 6.5 | Hierro/Hojalata | 4 | 4 | 6.5 | - |
| 4 x 4.5 x 6.5 | Hierro/Hojalata | 4 | 4.5 | 6.5 | - |
| 4 x 5 x 6.5 | Hierro/Hojalata | 4 | 5 | 6.5 | - |
| 4 x 6 x 6.5 | Hierro/Hojalata | 4 | 6 | 6.5 | - |
| 4 x 6 x 10 | Hierro/Hojalata | 4 | 6 | 10 | - |
| 4 x 7 x 6.5 | Hierro/Hojalata | 4 | 7 | 6.5 | - |
| 4 x 8 x 6.5 | Hierro/Hojalata | 4 | 8 | 6.5 | - |
| 4 x 9 x 6.5 | Hierro/Hojalata | 4 | 9 | 6.5 | - |
| 4 x 10 x 6.5 | Hierro/Hojalata | 4 | 10 | 6.5 | - |
| 4.2 x 3.2 x 6 | Hierro/Hojalata | 4.2 | 3.2 | 6 | - |
| 4.5 x 4.5 x 6.5 | Hierro/Hojalata | 4.5 | 4.5 | 6.5 | - |
| 4.5 x 4.5 x 8 | Hierro/Hojalata | 4.5 | 4.5 | 8 | - |
| 4.5 x 5.5 x 8 | Hierro/Hojalata | 4.5 | 5.5 | 8 | - |
| 4.5 x 6 x 8 | Hierro/Hojalata | 4.5 | 6 | 8 | - |
| 4.5 x 7 x 8 | Hierro/Hojalata | 4.5 | 7 | 8 | - |
| 4.75 x 3 x 7.5 | Hierro/Hojalata | 4.75 | 3 | 7.5 | - |
| 4.75 x 3.1 x 7.5 | Hierro/Hojalata | 4.75 | 3.1 | 7.5 | - |
| 4.75 x 3.8 x 7.5 | Hierro/Hojalata | 4.75 | 3.8 | 7.5 | - |
| 4.75 x 7 x 7.25 | Hierro/Hojalata | 4.75 | 7 | 7.25 | - |
| 4.75 x 8 x 7.25 | Hierro/Hojalata | 4.75 | 8 | 7.25 | - |
| 4.75 x 9 x 7.25 | Hierro/Hojalata | 4.75 | 9 | 7.25 | - |
| 4.75 x 9 x 7.5 | Hierro/Hojalata | 4.75 | 9 | 7.5 | - |
| 4.75 x 10 x 7.5 | Hierro/Hojalata | 4.75 | 10 | 7.5 | - |
| 4.75 x 11.5 x 7.5 | Hierro/Hojalata | 4.75 | 11.5 | 7.5 | - |
| 5 x 3 x 8 | Hierro/Hojalata | 5 | 3 | 8 | - |
| 5 x 3.5 x 8 | Hierro/Hojalata | 5 | 3.5 | 8 | - |
| 5 x 4 x 8 | Hierro/Hojalata | 5 | 4 | 8 | - |
| 5 x 4 x 14 x 0.35 | Hierro/Hojalata | 5 | 4 | 14 | 0.35 |
| 5 x 4.5 x 7.5 | Hierro/Hojalata | 5 | 4.5 | 7.5 | - |
| 5 x 5 x 7.5 | Hierro/Hojalata | 5 | 5 | 7.5 | - |
| 5 x 5.5 x 7.5 | Hierro/Hojalata | 5 | 5.5 | 7.5 | - |
| 5 x 6 x 7.5 | Hierro/Hojalata | 5 | 6 | 7.5 | - |
| 5 x 6.5 x 7.5 | Hierro/Hojalata | 5 | 6.5 | 7.5 | - |
| 5.5 x 4 x 8 | Hierro/Hojalata | 5.5 | 4 | 8 | - |
| 5.5 x 5.5 x 8 | Hierro/Hojalata | 5.5 | 5.5 | 8 | - |
| 5.5 x 5.5 x 10 | Hierro/Hojalata | 5.5 | 5.5 | 10 | - |
| 5.5 x 6.3 x 8 | Hierro/Hojalata | 5.5 | 6.3 | 8 | - |
| 5.5 x 6.5 x 8 | Hierro/Hojalata | 5.5 | 6.5 | 8 | - |
| 5.5 x 7.3 x 8 | Hierro/Hojalata | 5.5 | 7.3 | 8 | - |
| 6 x 2.5 x 8.5 | Hierro/Hojalata | 6 | 2.5 | 8.5 | - |
| 6 x 3 x 8.75 | Hierro/Hojalata | 6 | 3 | 8.75 | - |
| 6 x 4 x 8.5 | Hierro/Hojalata | 6 | 4 | 8.5 | - |
| 6 x 5 x 8.5 | Hierro/Hojalata | 6 | 5 | 8.5 | - |
| 6 x 6 x 8.5 | Hierro/Hojalata | 6 | 6 | 8.5 | - |
| 6 x 7 x 10 | Hierro/Hojalata | 6 | 7 | 10 | - |
| 6 x 8 x 10 | Hierro/Hojalata | 6 | 8 | 10 | - |
| 6 x 9 x 10 | Hierro/Hojalata | 6 | 9 | 10 | - |
| 6 x 10 x 10 | Hierro/Hojalata | 6 | 10 | 10 | - |
| 6.25 x 11.5 x 11 x 0.80 | Hierro/Hojalata | 6.25 | 11.5 | 11 | 0.80 |
| 6.5 x 6 x 8.5 | Hierro/Hojalata | 6.5 | 6 | 8.5 | - |
| 6.5 x 6.5 x 12 | Hierro/Hojalata | 6.5 | 6.5 | 12 | - |
| 6.5 x 7 x 10 | Hierro/Hojalata | 6.5 | 7 | 10 | - |
| 6.5 x 7.5 x 10 | Hierro/Hojalata | 6.5 | 7.5 | 10 | - |
| 6.5 x 8 x 10 | Hierro/Hojalata | 6.5 | 8 | 10 | - |
| 6.5 x 9 x 14 x 0.80 | Hierro/Hojalata | 6.5 | 9 | 14 | 0.80 |
| 7 x 3 x 10 | Hierro/Hojalata | 7 | 3 | 10 | - |
| 7 x 4 x 10 | Hierro/Hojalata | 7 | 4 | 10 | - |
| 7 x 5 x 10 | Hierro/Hojalata | 7 | 5 | 10 | - |
| 7 x 6 x 10 | Hierro/Hojalata | 7 | 6 | 10 | - |
| 7.5 x 8 x 12 x 0.80 | Hierro/Hojalata | 7.5 | 8 | 12 | 0.80 |
| 8 x 3.5 x 11 | Hierro/Hojalata | 8 | 3.5 | 11 | - |
| 8 x 4.5 x 11 | Hierro/Hojalata | 8 | 4.5 | 11 | - |
| 8 x 5 x 12.5 x 0.30 | Hierro/Hojalata | 8 | 5 | 12.5 | 0.30 |
| 8.2 x 8 x 12.75 x 0.80 | Hierro/Hojalata | 8.2 | 8 | 12.75 | 0.80 |
| 8.25 x 6 x 14.5 x 0.35 | Hierro/Hojalata | 8.25 | 6 | 14.5 | 0.35 |
| 8.25 x 8.5 x 14.5 x 0.35 | Hierro/Hojalata | 8.25 | 8.5 | 14.5 | 0.35 |
| 8.25 x 10.5 x 14.5 x 0.35 | Hierro/Hojalata | 8.25 | 10.5 | 14.5 | 0.35 |
| 9 x 6 x 11 x 0.35 | Hierro/Hojalata | 9 | 6 | 11 | 0.35 |
| 10 x 7 x 12.75 x 0.5 | Hierro/Hojalata | 10 | 7 | 12.75 | 0.5 |
| 10 x 8.5 x 12.75 x 0.80 | Hierro/Hojalata | 10 | 8.5 | 12.75 | 0.80 |
| 10 x 9 x 14.5 x 0.35 | Hierro/Hojalata | 10 | 9 | 14.5 | 0.35 |
| 10.5 x 8.5 x 14.5 x 0.50 | Hierro/Hojalata | 10.5 | 8.5 | 14.5 | 0.50 |
| Medida (D x L x C x E) | Material | D (mm) | L (mm) | C (mm) | E (mm) |
|---|---|---|---|---|---|
| 1.2 x 2.5 x 2.5 | Bronce/Latón | 1.2 | 2.5 | 2.5 | - |
| 1.5 x 1.5 x 3 | Bronce/Latón | 1.5 | 1.5 | 3 | - |
| 1.5 x 2 x 2.7 | Bronce/Latón | 1.5 | 2 | 2.7 | - |
| 1.5 x 2.5 x 3 | Bronce/Latón | 1.5 | 2.5 | 3 | - |
| 1.5 x 3 x 3 | Bronce/Latón | 1.5 | 3 | 3 | - |
| 1.5 x 3.5 x 3 | Bronce/Latón | 1.5 | 3.5 | 3 | - |
| 1.5 x 4 x 3 | Bronce/Latón | 1.5 | 4 | 3 | - |
| 1.5 x 4.3 x 3 | Bronce/Latón | 1.5 | 4.3 | 3 | - |
| 1.5 x 4.5 x 3 | Bronce/Latón | 1.5 | 4.5 | 3 | - |
| 1.5 x 5 x 2.7 | Bronce/Latón | 1.5 | 5 | 2.7 | - |
| 1.5 x 5 x 3 | Bronce/Latón | 1.5 | 5 | 3 | - |
| 1.8 x 2.5 x 3 | Bronce/Latón | 1.8 | 2.5 | 3 | - |
| 1.8 x 3.5 x 3 | Bronce/Latón | 1.8 | 3.5 | 3 | - |
| 2 x 2.5 x 3 | Bronce/Latón | 2 | 2.5 | 3 | - |
| 2 x 3 x 3.5 | Bronce/Latón | 2 | 3 | 3.5 | - |
| 2 x 3.5 x 3 | Bronce/Latón | 2 | 3.5 | 3 | - |
| 2 x 3.5 x 3.5 | Bronce/Latón | 2 | 3.5 | 3.5 | - |
| 2 x 3.7 x 3.8 | Bronce/Latón | 2 | 3.7 | 3.8 | - |
| 2 x 4 x 3.5 | Bronce/Latón | 2 | 4 | 3.5 | - |
| 2 x 4 x 4 | Bronce/Latón | 2 | 4 | 4 | - |
| 2 x 4.2 x 4 | Bronce/Latón | 2 | 4.2 | 4 | - |
| 2 x 4.5 x 3.5 | Bronce/Latón | 2 | 4.5 | 3.5 | - |
| 2 x 4.5 x 4 | Bronce/Latón | 2 | 4.5 | 4 | - |
| 2 x 5 x 3.5 | Bronce/Latón | 2 | 5 | 3.5 | - |
| 2 x 5 x 4 | Bronce/Latón | 2 | 5 | 4 | - |
| 2 x 5.5 x 3.5 | Bronce/Latón | 2 | 5.5 | 3.5 | - |
| 2 x 6 x 3.5 | Bronce/Latón | 2 | 6 | 3.5 | - |
| 2 x 6 x 4 | Bronce/Latón | 2 | 6 | 4 | - |
| 2.1 x 1.7 x 3 | Bronce/Latón | 2.1 | 1.7 | 3 | - |
| 2.1 x 1.7 x 3.5 | Bronce/Latón | 2.1 | 1.7 | 3.5 | - |
| 2.1 x 1.8 x 3.5 | Bronce/Latón | 2.1 | 1.8 | 3.5 | - |
| 2.1 x 2 x 3.5 | Bronce/Latón | 2.1 | 2 | 3.5 | - |
| 2.25 x 2.5 x 3.5 | Bronce/Latón | 2.25 | 2.5 | 3.5 | - |
| 2.25 x 3 x 3.5 | Bronce/Latón | 2.25 | 3 | 3.5 | - |
| 2.25 x 3.75 x 3 | Bronce/Latón | 2.25 | 3.75 | 3 | - |
| 2.25 x 3.75 x 3.75 | Bronce/Latón | 2.25 | 3.75 | 3.75 | - |
| 2.25 x 4 x 3.75 | Bronce/Latón | 2.25 | 4 | 3.75 | - |
| 2.25 x 4 x 4 | Bronce/Latón | 2.25 | 4 | 4 | - |
| 2.25 x 4.5 x 4 | Bronce/Latón | 2.25 | 4.5 | 4 | - |
| 2.25 x 5 x 4 | Bronce/Latón | 2.25 | 5 | 4 | - |
| 2.25 x 6 x 4 | Bronce/Latón | 2.25 | 6 | 4 | - |
| 2.25 x 7 x 4 | Bronce/Latón | 2.25 | 7 | 4 | - |
| 2.25 x 7.5 x 4 | Bronce/Latón | 2.25 | 7.5 | 4 | - |
| 2.25 x 8 x 4 | Bronce/Latón | 2.25 | 8 | 4 | - |
| 2.5 x 3 x 4 | Bronce/Latón | 2.5 | 3 | 4 | - |
| 2.5 x 3.5 x 4 | Bronce/Latón | 2.5 | 3.5 | 4 | - |
| 2.5 x 4 x 4 | Bronce/Latón | 2.5 | 4 | 4 | - |
| 2.5 x 4 x 6.5 | Bronce/Latón | 2.5 | 4 | 6.5 | - |
| 2.5 x 4.5 x 4 | Bronce/Latón | 2.5 | 4.5 | 4 | - |
| 2.5 x 4.5 x 6.5 | Bronce/Latón | 2.5 | 4.5 | 6.5 | - |
| 2.5 x 5 x 4 | Bronce/Latón | 2.5 | 5 | 4 | - |
| 2.5 x 5 x 4.5 | Bronce/Latón | 2.5 | 5 | 4.5 | - |
| 2.5 x 5 x 6.5 | Bronce/Latón | 2.5 | 5 | 6.5 | - |
| 2.5 x 6 x 4 | Bronce/Latón | 2.5 | 6 | 4 | - |
| 2.5 x 6 x 4.5 | Bronce/Latón | 2.5 | 6 | 4.5 | - |
| 2.5 x 6 x 5.5 | Bronce/Latón | 2.5 | 6 | 5.5 | - |
| 2.5 x 7.5 x 4 | Bronce/Latón | 2.5 | 7.5 | 4 | - |
| 2.5 x 7.5 x 4.5 | Bronce/Latón | 2.5 | 7.5 | 4.5 | - |
| 2.5 x 7.5 x 5.5 | Bronce/Latón | 2.5 | 7.5 | 5.5 | - |
| 2.5 x 8 x 4.5 | Bronce/Latón | 2.5 | 8 | 4.5 | - |
| 2.5 x 9 x 4.5 | Bronce/Latón | 2.5 | 9 | 4.5 | - |
| 2.6 x 3.5 x 3.75 | Bronce/Latón | 2.6 | 3.5 | 3.75 | - |
| 2.6 x 4.5 x 3.75 | Bronce/Latón | 2.6 | 4.5 | 3.75 | - |
| 2.6 x 5.5 x 3.75 | Bronce/Latón | 2.6 | 5.5 | 3.75 | - |
| 3 x 3 x 4.5 | Bronce/Latón | 3 | 3 | 4.5 | - |
| 3 x 3 x 5.5 | Bronce/Latón | 3 | 3 | 5.5 | - |
| 3 x 3.5 x 4.5 | Bronce/Latón | 3 | 3.5 | 4.5 | - |
| 3 x 3.5 x 5.5 | Bronce/Latón | 3 | 3.5 | 5.5 | - |
| 3 x 4 x 5.5 | Bronce/Latón | 3 | 4 | 5.5 | - |
| 3 x 4.5 x 4.5 | Bronce/Latón | 3 | 4.5 | 4.5 | - |
| 3 x 4.5 x 5.5 | Bronce/Latón | 3 | 4.5 | 5.5 | - |
| 3 x 4.5 x 5.75 | Bronce/Latón | 3 | 4.5 | 5.75 | - |
| 3 x 4.5 x 7 | Bronce/Latón | 3 | 4.5 | 7 | - |
| 3 x 5 x 5 | Bronce/Latón | 3 | 5 | 5 | - |
| 3 x 5 x 5.5 | Bronce/Latón | 3 | 5 | 5.5 | - |
| 3 x 5.5 x 4.5 | Bronce/Latón | 3 | 5.5 | 4.5 | - |
| 3 x 5.5 x 5 | Bronce/Latón | 3 | 5.5 | 5 | - |
| 3 x 6 x 4.5 | Bronce/Latón | 3 | 6 | 4.5 | - |
| 3 x 6 x 5.5 | Bronce/Latón | 3 | 6 | 5.5 | - |
| 3 x 6.5 x 4.5 | Bronce/Latón | 3 | 6.5 | 4.5 | - |
| 3 x 6.5 x 6 | Bronce/Latón | 3 | 6.5 | 6 | - |
| 3 x 7 x 5.5 | Bronce/Latón | 3 | 7 | 5.5 | - |
| 3 x 7.5 x 5.5 | Bronce/Latón | 3 | 7.5 | 5.5 | - |
| 3 x 8 x 5.5 | Bronce/Latón | 3 | 8 | 5.5 | - |
| 3 x 8.5 x 4.5 | Bronce/Latón | 3 | 8.5 | 4.5 | - |
| 3 x 8.5 x 5.5 | Bronce/Latón | 3 | 8.5 | 5.5 | - |
| 3 x 9 x 5.5 | Bronce/Latón | 3 | 9 | 5.5 | - |
| 3 x 10 x 5.5 | Bronce/Latón | 3 | 10 | 5.5 | - |
| 3 x 11 x 5.5 | Bronce/Latón | 3 | 11 | 5.5 | - |
| 3.05 x 3.5 x 4.5 | Bronce/Latón | 3.05 | 3.5 | 4.5 | - |
| 3.25 x 3.5 x 5 | Bronce/Latón | 3.25 | 3.5 | 5 | - |
| 3.25 x 4 x 5 | Bronce/Latón | 3.25 | 4 | 5 | - |
| 3.25 x 4 x 5.5 | Bronce/Latón | 3.25 | 4 | 5.5 | - |
| 3.25 x 4.5 x 5 | Bronce/Latón | 3.25 | 4.5 | 5 | - |
| 3.25 x 4.5 x 5.5 | Bronce/Latón | 3.25 | 4.5 | 5.5 | - |
| 3.25 x 5 x 5.5 | Bronce/Latón | 3.25 | 5 | 5.5 | - |
| 3.25 x 5.5 x 5 | Bronce/Latón | 3.25 | 5.5 | 5 | - |
| 3.25 x 6 x 5.5 | Bronce/Latón | 3.25 | 6 | 5.5 | - |
| 3.25 x 7 x 5.75 | Bronce/Latón | 3.25 | 7 | 5.75 | - |
| 3.25 x 8 x 5.75 | Bronce/Latón | 3.25 | 8 | 5.75 | - |
| 3.25 x 8.8 x 5.75 | Bronce/Latón | 3.25 | 8.8 | 5.75 | - |
| 3.25 x 9 x 5.75 | Bronce/Latón | 3.25 | 9 | 5.75 | - |
| 3.3 x 3 x 5 | Bronce/Latón | 3.3 | 3 | 5 | - |
| 3.5 x 4 x 6 | Bronce/Latón | 3.5 | 4 | 6 | - |
| 3.5 x 4.5 x 5 | Bronce/Latón | 3.5 | 4.5 | 5 | - |
| 3.5 x 5 x 6 | Bronce/Latón | 3.5 | 5 | 6 | - |
| 3.5 x 6 x 6 | Bronce/Latón | 3.5 | 6 | 6 | - |
| 3.5 x 7 x 5.75 | Bronce/Latón | 3.5 | 7 | 5.75 | - |
| 3.5 x 8 x 5.75 | Bronce/Latón | 3.5 | 8 | 5.75 | - |
| 3.5 x 8.5 x 5 | Bronce/Latón | 3.5 | 8.5 | 5 | - |
| 3.5 x 9 x 6 | Bronce/Latón | 3.5 | 9 | 6 | - |
| 3.5 x 10 x 6 | Bronce/Latón | 3.5 | 10 | 6 | - |
| 3.5 x 10.5 x 5.5 | Bronce/Latón | 3.5 | 10.5 | 5.5 | - |
| 3.75 x 3 x 5.5 | Bronce/Latón | 3.75 | 3 | 5.5 | - |
| 3.75 x 11.5 x 6.5 | Bronce/Latón | 3.75 | 11.5 | 6.5 | - |
| 4 x 3 x 6.5 | Bronce/Latón | 4 | 3 | 6.5 | - |
| 4 x 3.75 x 5.75 | Bronce/Latón | 4 | 3.75 | 5.75 | - |
| 4 x 4 x 6.5 | Bronce/Latón | 4 | 4 | 6.5 | - |
| 4 x 5 x 4.5 | Bronce/Latón | 4 | 5 | 4.5 | - |
| 4 x 5 x 6.5 | Bronce/Latón | 4 | 5 | 6.5 | - |
| 4 x 6 x 6 x 0.40 | Bronce/Latón | 4 | 6 | 6 | 0.40 |
| 4 x 6 x 6.5 | Bronce/Latón | 4 | 6 | 6.5 | - |
| 4 x 7 x 6.5 | Bronce/Latón | 4 | 7 | 6.5 | - |
| 4 x 7.5 x 6.5 | Bronce/Latón | 4 | 7.5 | 6.5 | - |
| 4 x 8.5 x 6.25 | Bronce/Latón | 4 | 8.5 | 6.25 | - |
| 4 x 8.5 x 6.5 | Bronce/Latón | 4 | 8.5 | 6.5 | - |
| 4 x 9 x 6.5 | Bronce/Latón | 4 | 9 | 6.5 | - |
| 4 x 10 x 6.5 | Bronce/Latón | 4 | 10 | 6.5 | - |
| 4 x 17 x 6 | Bronce/Latón | 4 | 17 | 6 | - |
| 4.5 x 3 x 6.5 | Bronce/Latón | 4.5 | 3 | 6.5 | - |
| 4.5 x 4.5 x 6 | Bronce/Latón | 4.5 | 4.5 | 6 | - |
| 4.5 x 4.5 x 8 | Bronce/Latón | 4.5 | 4.5 | 8 | - |
| 4.5 x 6.3 x 6.5 | Bronce/Latón | 4.5 | 6.3 | 6.5 | - |
| 4.75 x 3 x 6.5 | Bronce/Latón | 4.75 | 3 | 6.5 | - |
| 4.75 x 4 x 6.5 | Bronce/Latón | 4.75 | 4 | 6.5 | - |
| 4.75 x 7 x 7.25 | Bronce/Latón | 4.75 | 7 | 7.25 | - |
| 4.75 x 8 x 7.25 | Bronce/Latón | 4.75 | 8 | 7.25 | - |
| 4.75 x 9 x 7.25 | Bronce/Latón | 4.75 | 9 | 7.25 | - |
| 4.75 x 9 x 7.5 | Bronce/Latón | 4.75 | 9 | 7.5 | - |
| 4.75 x 10 x 7.25 | Bronce/Latón | 4.75 | 10 | 7.25 | - |
| 4.75 x 15 x 7.5 | Bronce/Latón | 4.75 | 15 | 7.5 | - |
| 5 x 3.5 x 7.5 | Bronce/Latón | 5 | 3.5 | 7.5 | - |
| 5 x 4 x 8 | Bronce/Latón | 5 | 4 | 8 | - |
| 5 x 4.5 x 7.5 | Bronce/Latón | 5 | 4.5 | 7.5 | - |
| 5 x 4.5 x 8 | Bronce/Latón | 5 | 4.5 | 8 | - |
| 5 x 5 x 7.5 | Bronce/Latón | 5 | 5 | 7.5 | - |
| 5 x 5.5 x 7.5 | Bronce/Latón | 5 | 5.5 | 7.5 | - |
| 5 x 6 x 7.5 | Bronce/Latón | 5 | 6 | 7.5 | - |
| 5 x 6.5 x 7.5 | Bronce/Latón | 5 | 6.5 | 7.5 | - |
| 5.5 x 4 x 8 | Bronce/Latón | 5.5 | 4 | 8 | - |
| 5.5 x 5.5 x 8 | Bronce/Latón | 5.5 | 5.5 | 8 | - |
| 5.5 x 5.5 x 10 | Bronce/Latón | 5.5 | 5.5 | 10 | - |
| 6 x 2.5 x 8.5 | Bronce/Latón | 6 | 2.5 | 8.5 | - |
| 6 x 4 x 8.5 | Bronce/Latón | 6 | 4 | 8.5 | - |
| 6 x 7 x 10 | Bronce/Latón | 6 | 7 | 10 | - |
| 6 x 7.5 x 10 | Bronce/Latón | 6 | 7.5 | 10 | - |
| 6 x 8 x 10 | Bronce/Latón | 6 | 8 | 10 | - |
| 6 x 9 x 10 | Bronce/Latón | 6 | 9 | 10 | - |
| 6 x 10 x 10 | Bronce/Latón | 6 | 10 | 10 | - |
| 6.25 x 4 x 8.5 | Bronce/Latón | 6.25 | 4 | 8.5 | - |
| 6.25 x 7.5 x 10 | Bronce/Latón | 6.25 | 7.5 | 10 | - |
| 6.5 x 6.5 x 12 | Bronce/Latón | 6.5 | 6.5 | 12 | - |
| 6.5 x 8 x 10 | Bronce/Latón | 6.5 | 8 | 10 | - |
| 7 x 2.5 x 10 | Bronce/Latón | 7 | 2.5 | 10 | - |
| 7 x 3 x 10 | Bronce/Latón | 7 | 3 | 10 | - |
| 7 x 3 x 12.5 | Bronce/Latón | 7 | 3 | 12.5 | - |
| 7 x 4 x 10 | Bronce/Latón | 7 | 4 | 10 | - |
| 7 x 4 x 12.5 | Bronce/Latón | 7 | 4 | 12.5 | - |
| 8 x 3.5 x 11 | Bronce/Latón | 8 | 3.5 | 11 | - |
| 8 x 3.5 x 11 x 0.4 | Bronce/Latón | 8 | 3.5 | 11 | 0.4 |
| 8 x 4.5 x 11 | Bronce/Latón | 8 | 4.5 | 11 | - |
| 8 x 7.5 x 12 x 0.80 | Bronce/Latón | 8 | 7.5 | 12 | 0.80 |
| 8 x 8.2 x 12.75 x 0.80 | Bronce/Latón | 8 | 8.2 | 12.75 | 0.80 |
| 8.2 x 8 x 12.75 x 0.80 | Bronce/Latón | 8.2 | 8 | 12.75 | 0.80 |
| 8.25 x 4.8 x 9.5 | Bronce/Latón | 8.25 | 4.8 | 9.5 | - |
| 8.25 x 6 x 14.5 x 0.40 | Bronce/Latón | 8.25 | 6 | 14.5 | 0.40 |
| 8.25 x 8.5 x 14.5 x 0.40 | Bronce/Latón | 8.25 | 8.5 | 14.5 | 0.40 |
| 8.25 x 10.5 x 14.5 x 0.40 | Bronce/Latón | 8.25 | 10.5 | 14.5 | 0.40 |
| 9 x 7 x 12.75 x 0.80 | Bronce/Latón | 9 | 7 | 12.75 | 0.80 |
| 9 x 7.5 x 12.8 x 0.80 | Bronce/Latón | 9 | 7.5 | 12.8 | 0.80 |
| 9 x 8 x 12.5 x 0.80 | Bronce/Latón | 9 | 8 | 12.5 | 0.80 |
| 10.5 x 4.5 x 12.5 x 0.40 | Bronce/Latón | 10.5 | 4.5 | 12.5 | 0.40 |
| 10.5 x 8.5 x 14.5 x 0.5 | Bronce/Latón | 10.5 | 8.5 | 14.5 | 0.5 |
| 11.5 x 10 x 18 x 0.80 | Bronce/Latón | 11.5 | 10 | 18 | 0.80 |
| Medida (D x L x C x E) | Material | D (mm) | L (mm) | C (mm) | E (mm) |
|---|---|---|---|---|---|
| 2.5 x 3 x 4 | Aluminio | 2.5 | 3 | 4 | - |
| 3.25 x 3.5 x 5 | Aluminio | 3.25 | 3.5 | 5 | - |
| 3.25 x 4 x 5.5 | Aluminio | 3.25 | 4 | 5.5 | - |
| 3.25 x 4.5 x 5.5 | Aluminio | 3.25 | 4.5 | 5.5 | - |
| 4.5 x 4.5 x 8 | Aluminio | 4.5 | 4.5 | 8 | - |
| 4.5 x 5.5 x 8 | Aluminio | 4.5 | 5.5 | 8 | - |
| 5 x 3 x 7 | Aluminio | 5 | 3 | 7 | - |
| 5 x 4 x 8 | Aluminio | 5 | 4 | 8 | - |
| 5.5 x 5.5 x 10 | Aluminio | 5.5 | 5.5 | 10 | - |
| 6 x 4 x 10 | Aluminio | 6 | 4 | 10 | - |
| 6.5 x 6.5 x 12 | Aluminio | 6.5 | 6.5 | 12 | - |
| 7.25 x 3.3 x 11 - Arandela Telescópica | Aluminio | 7.25 | 3.3 | 11 - Arandela Telescópica | - |
Acabados disponibles
Tratamientos Galvánicos
Ofrecemos una amplia gama de acabados superficiales para cada aplicación industrial.
Sujetos a cantidades mínimas.
Bronceado
Niquelado
Cincado Azul
Oro Italiano
Cincado amarillo
Florentino
Empavonado
Estañado
Plateado
Niquelado
Estañado
